Audiovisual Devices Graph API - Room Info

Dashboard Summary

This dashboard provides an overview of audiovisual devices in GraphAPI rooms, including their statuses, alerts, and other key metrics. It is designed to help monitor and manage devices effectively.

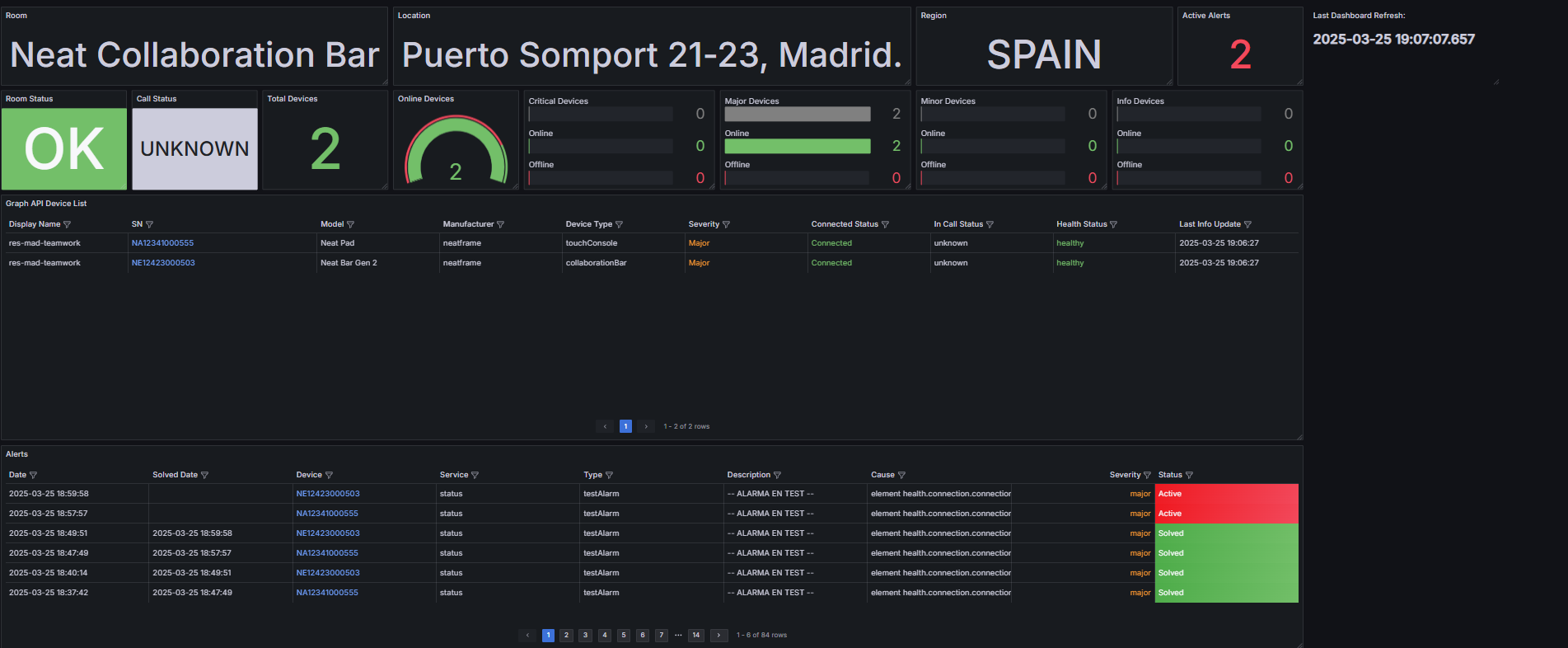

Dashboard Overview

Key Features

• Provides a comprehensive overview of audiovisual devices in this room.
• Displays room name, location, and region details for better context of the room.
• Displays active alerts.
• Tracks the total number of devices and their status.
• Displays the number of devices in each severity category and their current status
• Lists detailed device information and alert details in tabular format.
• Offers filtering options by region, location, and room for focused analysis.
• Automatically refreshes every 30 seconds to ensure up-to-date data.

Panels

1. Room

   • Type: Stat
   • Datasource: Dashboard (Total Devices)
   • Description: Displays the room name.

2. Location

   • Type: Stat
   • Datasource: Dashboard (Total Devices)
   • Description: Displays the location name.

3. Region

   • Type: Stat
   • Datasource: Dashboard (Total Devices)
   • Description: Displays the region name.

4. Active Alerts

   • Type: Stat
   • Datasource: marcusolsson-json-datasource (ALARM SERVICE GRAPH API CLOUD PRO RICOH JAPON)
   • Description: Shows the total number of active alerts.

5. Last Dashboard Refresh

   • Type: Text
   • Description: Displays the last refresh timestamp of the dashboard.

6. Room Status

   • Type: Stat
   • Datasource: Dashboard (Total Devices)
   • Description: Indicates the current status of the room.

7. Call Status

   • Type: Stat
   • Datasource: Dashboard (Total Devices)
   • Description: Displays the current call status in the room.

8. Total Devices

   • Type: Stat
   • Datasource:marcusolsson-json-datasource (GRAPHAPISERVICE API CLOUD PRO RICOH JAPON)
   • Description: Shows the total number of devices in the room.

9. Online Devices

   • Type: Gauge
   • Datasource: marcusolsson-json-datasource (GRAPHAPISERVICE API CLOUD PRO RICOH JAPON)
   • Description: Displays the percentage of devices currently online.

10. Critical Devices

    • Type: Bar Gauge
    • Datasource: Dashboard (Total Devices)
    • Description: Shows the count of critical devices group by status.

11. Major Devices

    • Type: Bar Gauge
    • Datasource: Dashboard (Total Devices)
    • Description: Shows the count of major devices group by status.

12. Minor Devices

    • Type: Bar Gauge
    • Datasource: Dashboard (Total Devices)
    • Description: Shows the count of minor devices group by status.

13. Info Devices

    • Type: Bar Gauge
    • Datasource: Dashboard (Total Devices)
    • Description: Shows the count of informational devices group by status.

14. Graph API Device List

    • Type: Table
    • Datasource: marcusolsson-json-datasource (GRAPHAPISERVICE API CLOUD PRO RICOH JAPON)
    • Description: Provides a detailed list of devices with their statuses and other attributes.

15. Alerts

    • Type: Table
    • Datasource: marcusolsson-json-datasource (ALARM SERVICE GRAPH API CLOUD PRO RICOH JAPON)
    • Description: Displays a list of alerts with details such as date, solved date, device, service, type, description, cause, severity and status.

Datasources

• GRAPHAPISERVICE API CLOUD PRO RICOH JAPON: Provides data for device and room metrics.
• ALARM SERVICE GRAPH API CLOUD PRO RICOH JAPON: Supplies alarm and status change data.

Refresh Interval

The dashboard refreshes every 30 seconds to ensure up-to-date information.

Time Range

The default time range is set to the last 2 days (now-2d to now).
