Audiovisual Devices Neat&Graph Api - Device Detailed Info

This dashboard provides detailed insights into audiovisual devices by integrating data from Neat and Graph APIs. It offers a comprehensive view of device status, health, alerts, and network information, enabling efficient monitoring and troubleshooting.

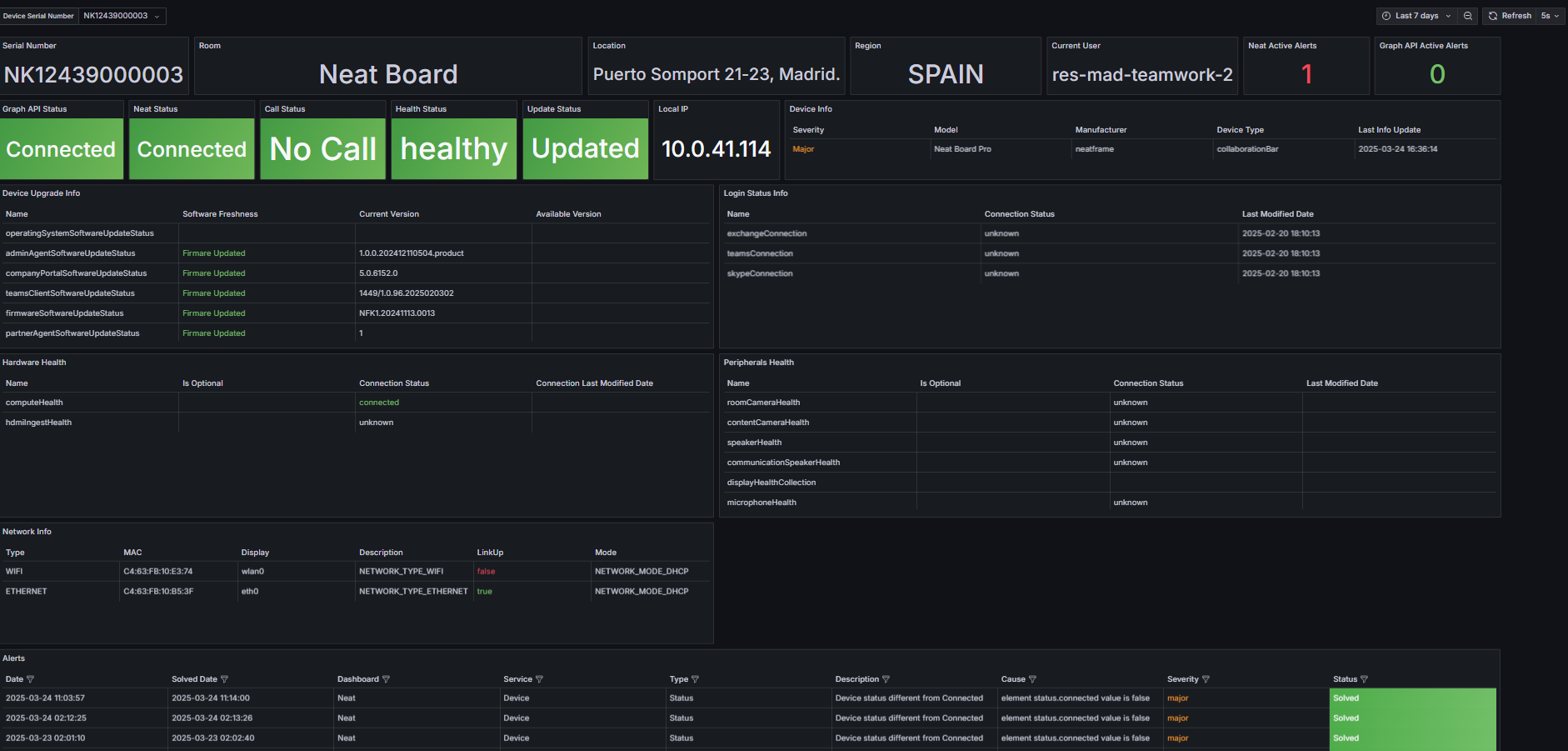

Dashboard Overview

Key Features

• Integration with Neat and Graph APIs for near real-time device monitoring.
• Panels for device health, alerts, network information, and more.
• Visualization of active alerts.
• Firmware update status and network information.

Panels

1. Serial Number

   • Type: Stat
   • Datasource: Dashboard (Graph API Status)
   • Description: Displays the serial number of the device.

2. Room

   • Type: Stat
   • Datasource: Dashboard (Graph API Status)
   • Description: Shows the room associated with the device.

3. Location

   • Type: Stat
   • Datasource: Dashboard (Graph API Status)
   • Description: Indicates the location of the device.

4. Region

   • Type: Stat
   • Datasource: Dashboard (Graph API Status)
   • Description: Displays the region of the device.

5. Current User

   • Type: Stat
   • Datasource: Dashboard (Graph API Status)
   • Description: Shows the current user logged into the device.

6. Neat Active Alerts

   • Type: Stat
   • Datasource: marcusolsson-json-datasource (ALARM SERVICE NEAT API CLOUD PRO RICOH JAPON)
   • Description: Displays active alerts from the Neat API.

7. Graph API Active Alerts

   • Type: Stat
   • Datasource: marcusolsson-json-datasource (ALARM SERVICE GRAPH API CLOUD PRO RICOH JAPON)
   • Description: Displays active alerts from the Graph API.

8. Graph API Status

   • Type: Stat
   • Datasource: marcusolsson-json-datasource (GRAPHAPISERVICE API CLOUD PRO RICOH JAPON)
   • Description: Displays the connection status of the device.

9. Neat Status

   • Type: Stat
   • Datasource: marcusolsson-json-datasource (NEATSERVICE API CLOUD PRO RICOH JAPON)
   • Description: Displays the connection status of the device.

10. Call Status

    • Type: Stat
    • Datasource: Dashboard (Neat Status)
    • Description: Indicates the current call status of the device.

11. Health Status

    • Type: Stat
    • Datasource: Dashboard (Graph API Status)
    • Description: Shows the overall health status of the device.

12. Update Status

    • Type: Stat
    • Datasource: Dashboard (Graph API Status)
    • Description: Displays whether the device needs a firmware update.

13. Local IP

    • Type: Stat
    • Datasource: Dashboard (Neat Status)
    • Description: Indicates the Local IP of the device.

14. Device Info

    • Type: Table
    • Datasource: Dashboard (Graph API Status)
    • Description: Provides detailed information about the device, including firmware and upgrade status.

15. Device Upgrade Info

    • Type: Table
    • Datasource: marcusolsson-json-datasource (GRAPHAPISERVICE API CLOUD PRO RICOH JAPON)
    • Description: Shows firmware upgrade details, including current and available versions.

16. Login Status Info

    • Type: Table
    • Datasource: marcusolsson-json-datasource (GRAPHAPISERVICE API CLOUD PRO RICOH JAPON)
    • Description: Provides login status details, including connection status and last modified date.

17. Hardware Health

    • Type: Table
    • Datasource: marcusolsson-json-datasource (GRAPHAPISERVICE API CLOUD PRO RICOH JAPON)
    • Description: Displays hardware health information, including connection status and optional components.

18. Peripherals Health

    • Type: Table
    • Datasource: marcusolsson-json-datasource (GRAPHAPISERVICE API CLOUD PRO RICOH JAPON)
    • Description: Shows the health of connected peripherals.

19. Network Info

    • Type: Table
    • Datasource: Mixed marcusolsson-json-datasource (GRAPHAPISERVICE API CLOUD PRO RICOH JAPON and NEATSERVICE API CLOUD PRO RICOH JAPON)
    • Description: Displays network-related information such as MAC addresses and connection status.

20. Alerts

    • Type: Table
    • Datasource: Mixed marcusolsson-json-datasource (ALARM SERVICE NEAT API CLOUD PRO RICOH JAPON and ALARM SERVICE GRAPH API CLOUD PRO RICOH JAPON)
    • Description: Lists all alerts with severity and status.

Datasources

• GRAPHAPISERVICE API CLOUD PRO RICOH JAPON: Provides data for device and room metrics.
• ALARM SERVICE GRAPH API CLOUD PRO RICOH JAPON: Supplies alarm and status change data.
• NEATSERVICE API CLOUD PRO RICOH JAPON: Provides data on device connections and room statuses.
• ALARM SERVICE NEAT API CLOUD PRO RICOH JAPON: Supplies alarm and status change information.

Filters

• Device Serial Number: Query-based filter fetching serial numbers based on room, location, and region.

Refresh Interval

• The dashboard refreshes automatically every 30 seconds.

Time Range

• Default time range: Last 7 days (now-7d to now).
