Audiovisual Devices Neat & GraphAPI - Room Info

Dashboard Summary

This dashboard provides a comprehensive overview of audiovisual devices managed via Neat and GraphAPI. It includes real-time monitoring of device statuses, alerts, and key metrics for rooms, locations, and regions.

The main objetive of this Dashboard is to show a comparative between NEAT Room Dashboard and GraphAPI Room Dashboard.

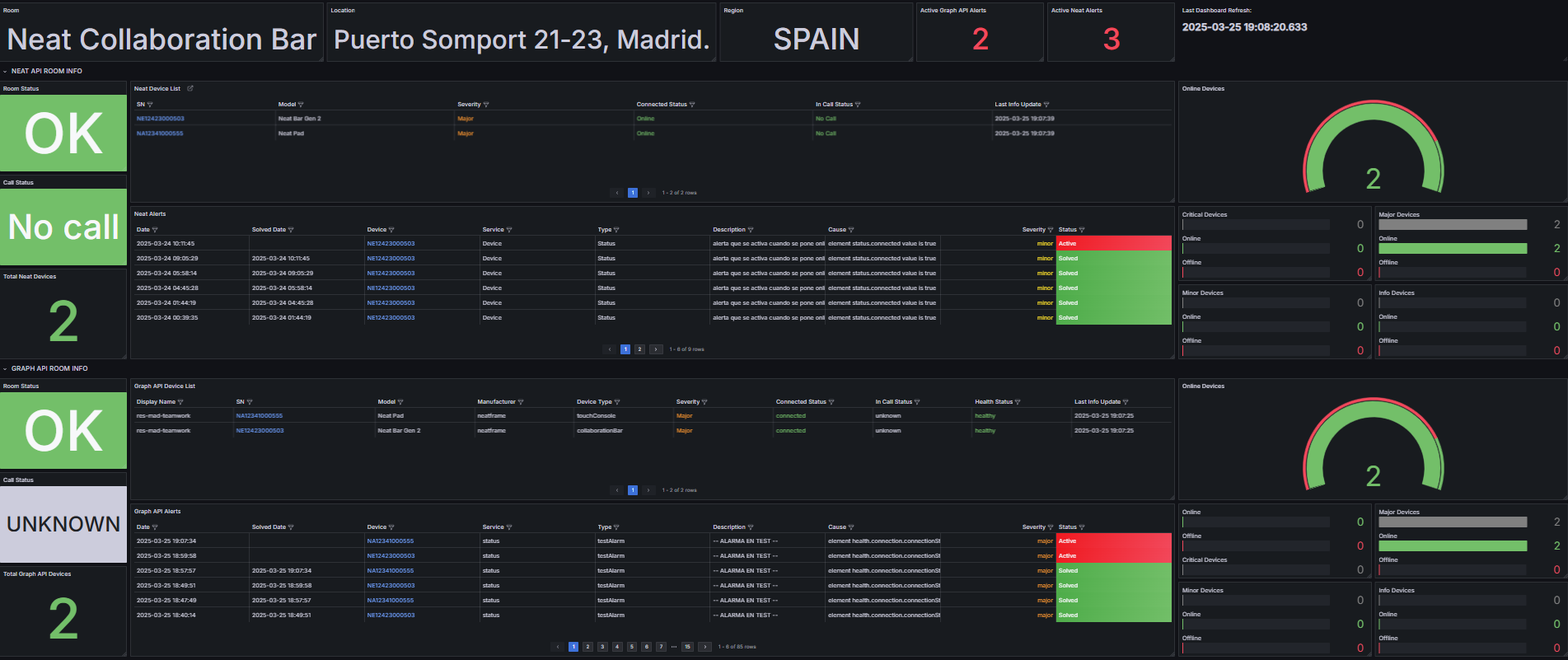

Dashboard Overview

Key Features

• Provides a comprehensive overview of audiovisual devices in this room.
• Provides a comparative between NEAT Room Dashboard and GraphAPI Room Dashboard
• Displays room name, location, and region details for better context of the room.
• Displays active alerts.
• Tracks the total number of devices and their status.
• Displays the number of devices in each severity category and their current status
• Lists detailed device information and alert details in tabular format.
• Offers filtering options by region, location, and room for focused analysis.
• Automatically refreshes every 30 seconds to ensure up-to-date data.

Panels in "Neat API Room Info" Row

1. Room

   • Type: Stat
   • Datasource: Dashboard
   • Description: Displays the name of the room being monitored.

2. Location

   • Type: Stat
   • Datasource: Dashboard
   • Description: Shows the location associated with the room.

3. Region

   • Type: Stat
   • Datasource: Dashboard
   • Description: Indicates the region of the room.

4. Active Graph API Alerts

   • Type: Stat
   • Datasource: Alarm Service Graph API
   • Description: Displays the total number of active alerts from Graph API.

5. Active Neat Alerts

   • Type: Stat
   • Datasource: Alarm Service Neat API
   • Description: Shows the total number of active alerts from Neat API.

6. Neat Device List

   • Type: Table
   • Datasource: NeatService API
   • Description: Lists all Neat devices with details such as model, status, and last update.

7. Graph API Device List

   • Type: Table
   • Datasource: GraphAPIService API
   • Description: Lists all devices managed via GraphAPI with details like health status and connection.

8. Online Devices (Neat)

   • Type: Gauge
   • Datasource: NeatService API
   • Description: Displays the percentage of online devices for Neat.

9. Online Devices (Graph API)

   • Type: Gauge
   • Datasource: GraphAPIService API
   • Description: Shows the percentage of online devices for Graph API.

10. Critical Devices

    • Type: Bar Gauge
    • Datasource: Dashboard
    • Description: Displays the count of critical devices.

11. Minor Devices

    • Type: Bar Gauge
    • Datasource: Dashboard
    • Description: Shows the count of minor devices.

12. Info Devices

    • Type: Bar Gauge
    • Datasource: Dashboard
    • Description: Displays the count of informational devices.

Panels in "Graph API Room Info" Row

1. Room

   • Type: Stat
   • Datasource: Dashboard (Total Devices)
   • Description: Displays the room name.

2. Location

   • Type: Stat
   • Datasource: Dashboard (Total Devices)
   • Description: Displays the location name.

3. Region

   • Type: Stat
   • Datasource: Dashboard (Total Devices)
   • Description: Displays the region name.

4. Active Alerts

   • Type: Stat
   • Datasource: marcusolsson-json-datasource (ALARM SERVICE GRAPH API CLOUD PRO RICOH JAPON)
   • Description: Shows the total number of active alerts.

5. Last Dashboard Refresh

   • Type: Text
   • Description: Displays the last refresh timestamp of the dashboard.

6. Room Status

   • Type: Stat
   • Datasource: Dashboard (Total Devices)
   • Description: Indicates the current status of the room.

7. Call Status

   • Type: Stat
   • Datasource: Dashboard (Total Devices)
   • Description: Displays the current call status in the room.

8. Total Devices

   • Type: Stat
   • Datasource:marcusolsson-json-datasource (GRAPHAPISERVICE API CLOUD PRO RICOH JAPON)
   • Description: Shows the total number of devices in the room.

9. Online Devices

   • Type: Gauge
   • Datasource: marcusolsson-json-datasource (GRAPHAPISERVICE API CLOUD PRO RICOH JAPON)
   • Description: Displays the percentage of devices currently online.

10. Critical Devices

    • Type: Bar Gauge
    • Datasource: Dashboard (Total Devices)
    • Description: Shows the count of critical devices group by status.

11. Major Devices

    • Type: Bar Gauge
    • Datasource: Dashboard (Total Devices)
    • Description: Shows the count of major devices group by status.

12. Minor Devices

    • Type: Bar Gauge
    • Datasource: Dashboard (Total Devices)
    • Description: Shows the count of minor devices group by status.

13. Info Devices

    • Type: Bar Gauge
    • Datasource: Dashboard (Total Devices)
    • Description: Shows the count of informational devices group by status.

14. Graph API Device List

    • Type: Table
    • Datasource: marcusolsson-json-datasource (GRAPHAPISERVICE API CLOUD PRO RICOH JAPON)
    • Description: Provides a detailed list of devices with their statuses and other attributes.

15. Alerts

    • Type: Table
    • Datasource: marcusolsson-json-datasource (ALARM SERVICE GRAPH API CLOUD PRO RICOH JAPON)
    • Description: Displays a list of alerts with details such as date, solved date, device, service, type, description, cause, severity and status.

Datasources

• NEATSERVICE API CLOUD PRO RICOH JAPON: Provides data on device connections and room statuses.
• ALARM SERVICE NEAT API CLOUD PRO RICOH JAPON: Supplies alarm and status change information.
• GRAPHAPISERVICE API CLOUD PRO RICOH JAPON: Provides data for device and room metrics.
• ALARM SERVICE GRAPH API CLOUD PRO RICOH JAPON: Supplies alarm and status change data.

Refresh Interval

The dashboard refreshes every 30 seconds to ensure real-time data accuracy.

Time Range

The default time range is set to last 2 days (now-2d to now).
