Audiovisual Devices Neat & GraphAPI - Rooms Dashboard

This dashboard provides a comprehensive view of audiovisual devices in Neat rooms, including their status, distribution, and key metrics. It is designed to help monitor and manage devices effectively.

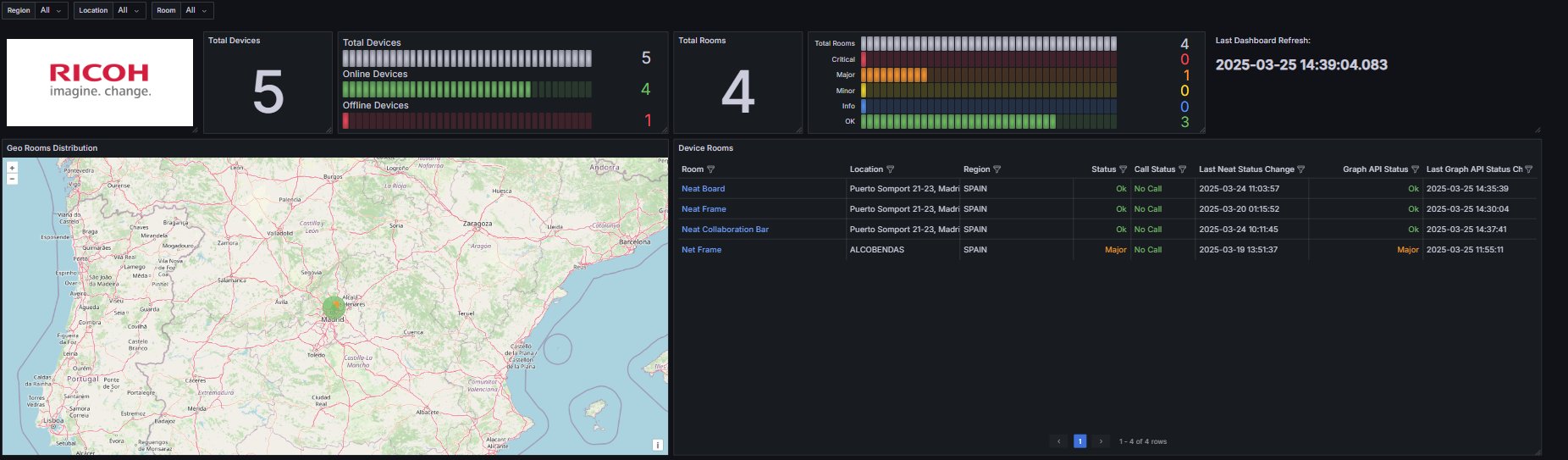

Dashboard Overview

Dashboard Overview

Key Features

  • Displays the total number of devices across all rooms.
    • Provides a global view of all devices across the monitored rooms.
    • Differentiates between connected and disconnected devices, offering a near real-time count for each status.
  • Shows the total number of rooms being monitored.
    • Displays the overall number of rooms under observation.
    • Breaks down rooms by their operational status, allowing for quick assessment of the system’s health.
  • Visualizes the geographical distribution of rooms and their statuses on an interactive map.
  • Provides a detailed table of room information, displays comprehensive data, including:
    • Room statuses (Critical, Major, Minor, Info, Ok) from NEAT API and from GraphAPI.
    • Room call status (No Call, In Call).
    • Location and region for better geographic segmentation and monitoring.
  • Displays the timestamp of the last dashboard refresh.
  • Offers filtering options by region, location, and room for focused analysis.
  • Automatically refreshes every 30 seconds to ensure up-to-date data.

Panels

  1. Total Devices:

    • Type: Stat
    • Data Source: Dashboard (Device Rooms)
    • Description: Aggregates the total number of devices across all rooms.

  2. Total Devices (Bar Gauge):

    • Type: Bar Gauge
    • Data Source: marcusolsson-json-datasource (NEATSERVICE API CLOUD PRO RICOH JAPON)
    • Description: Displays the total number of devices, total connected devices, and total disconnected devices. The NEAT API is the source of this panel.

  3. Total Rooms:

    • Type: Stat
    • Data Source: marcusolsson-json-datasource (NEATSERVICE API CLOUD PRO RICOH JAPON)
    • Description: Displays the total number of rooms. The NEAT API is the source of this panel.

  4. Total Rooms (Bar Gauge):

    • Type: Bar Gauge
    • Data Source: Dashboard (Total Rooms)
    • Description: Displays the total number of rooms, the distribution according to their status and the total sum of each one (Critical, Major, Minor, Info, OK).

  5. Geo Rooms Distribution:

    • Type: Geomap
    • Data Source: marcusolsson-json-datasource (NEATSERVICE API CLOUD PRO RICOH JAPON)
    • Description: Visualizes room geolocations and their statuses on a map. The NEAT API is the source of this panel.

  6. Device Rooms:

    • Type: Table
    • Data Source: Mixed marcusolsson-json-datasource (GRAPHAPISERVICE API CLOUD PRO RICOH JAPON and ALARM SERVICE GRAPH API CLOUD PRO RICOH JAPON)
    • Description: Provides detailed information about each room, region, location, information from NEAT (status, call status and last status changes) and GraphAPI (status and last status changes).

  7. Last Dashboard Refresh:

    • Type: Text
    • Description: Displays the timestamp of the last dashboard refresh using a script.

Data Sources

  • NEATSERVICE API CLOUD PRO RICOH JAPON: Provides data on device connections and room statuses.
  • ALARM SERVICE NEAT API CLOUD PRO RICOH JAPON: Supplies alarm and status change information.
  • GRAPHAPISERVICE API CLOUD PRO RICOH JAPON: Provides data for device and room metrics.
  • ALARM SERVICE GRAPH API CLOUD PRO RICOH JAPON: Supplies alarm and status change data.

Filters

  • Region: Filter data by region.
  • Location: Filter data by location within a region.
  • Room: Filter data by specific room.

Refresh Interval

  • The dashboard refreshes every 30 seconds to ensure up-to-date information.

Time Range

  • The default time range is set to the last 6 hours (now-6h to now). In this case the time range does not matter.
